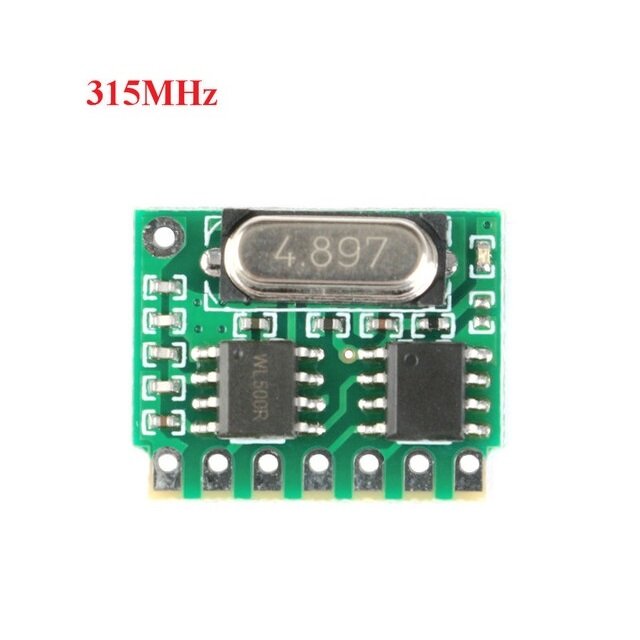

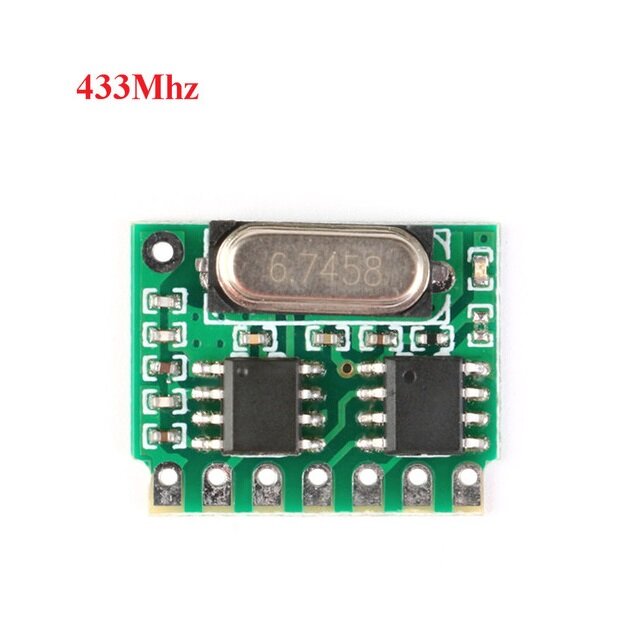

315MHz 433MHz Receiver Decoder Module Support PT2272 DIY Electronic ASK OOK TYJM01A-K PT2262 EV1527 SC5211 HS2240

4.4180

$6.99 / $8.53

*Name:
*Email:
*Phone:
*Quantity:
*Content:
Attachment:

Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

$3.99 / $8.53

Shipping to: United States | Express delivery: 7-12 business days | Standard delivery: 15-25 business days

location

Axɔ Fifa Dze egɔme

Kaati

Axɔ si wòkpɔ

Dɔwɔnuku Xɔse

Dɔwɔnuku xɔse si wòaxɔ

Dɔwɔwɔ Kɔkɔe

Dɔwɔwɔ xɔse si wòaxɔ $9.9 kple

Dɔwɔwɔ Kɔkɔe

Dɔwɔnukuwo si wòaxɔ 40 ŋkeke me. Dɔwɔnuku si wòkpɔ mele anyi o. Dɔwɔnuku si wòaxɔ kaati mele anyi o.

Dɔwɔnuku Xɔse

Dɔwɔwɔ Kɔkɔe

1. Dɔwɔwɔ Kɔkɔe

Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku. Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku. Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku.Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku.
Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku.Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku.Wòe nànye Roymall, wò dɔwɔnuku si wòkpɔ. Mía ɖe dɔwɔnuku siwo katã wɔna na dzigbeŋkeke, srɔ̃ɖeŋku, dɔwɔwɔ dziɖuɖu kple bubuwo. Kpɔe mía dɔwɔnukuwo na nya yeye siwo katã wɔna kple Roymall Dɔwɔnuku.

2.Dɔwɔwɔ Kɔkɔe

Features:

1. Intelligent identification chip type, support EV1527, PT2262 learning code / fixed code (welding code) IC remote control mixed use

2. Compatible with most learning codes and fixed code (weld code) chips on the market, including EV1527, PT2262, HX2262, SC2260, SC5211, HS2240, etc.

3. Intelligently adapts to the oscillation resistance of the transmitting end, without considering the oscillation resistance of the transmitting end, and has strong versatility and is more convenient to use.

4. Good local oscillator radiation suppression ability, multiple modules can work together and will not interfere with each other, does not affect the receiving distance

5. TYJM01A-K supports four modes of operation: Latch, L4, T4, M4, and H4.

6. Learning and mode conversion through the learning button trigger

Supports 4 outputs, the module comes with learning indicator and VT data valid indication, the operation is more intuitive and convenient

7. Decoder chip built-in EEPROM, support up to 32 sets of remote control memory

8. Wide operating voltage range: 2V ~ 5.5V

9. Module size: 18.8X14.8X5mm, small size, easy installation

Parameters:

Operating voltage: 2~5.5V

Working current:

2.8mA (315MHz Full Operation)

3.5mA (433MHz Full Operation)

Operating frequency: 315MHz/433.92MHz(Option)

Modulation method: ASK/00K

Receiver sensitivity: -108dBm

Data rate: up to 10kpbs

Drive capability per IO port: <=20mA

Operating temperature range: -40℃~85℃

Package included:

1 x Receiver Decoder Module

Module Working Principle :

In the pulse data string of each frame learning code (eg, EV1527) or fixed code (eg, PT2262),

It consists of two parts: the address code and the data code. In general, in the same remote control, the address code of each key is the same, and the data code for each key is different;

In the TYJM01A-K module, after learning, the module only memorizes the address code of the remote control button and does not memorize the data code of the button;

The module can intelligently identify the learning code or fixed code, and extract the address code from the received data to be compared with the address code stored in the EEPROM. If the same, the corresponding output mode is correspondingly output according to the received data code.
